Lisa Pro

open SLS 3D printer
A professional SLS 3D printer with an open environment and access to a wide range of materials.
The Lisa PRO was designed by innovation-driven engineers to help other innovators make a real impact.

Watch  VideoBrochure

open
Open
printing system
  • No pre-defined parameters and only dedicated materials. Choose from our compatible materials, or pick your own. For greater flexibility, you can also change our recommended printing settings.
wide-range-app
Wide range of
applications
  • With nine compatible materials, access to third-party materials, and the ability to manage printing parameters, the spectrum of possible applications is enormous.
reliable
Reliable
printer
  • The LISA Pro is trusted by hundreds of users across the world printing thousands of parts. The impressive results they’ve achieved only confirm the printer’s reliability.
print quality
Top-notch
print quality
  • The quality of the 3D printed parts is comparable to that of industrial size machines. Just consider the number of applications the Lisa Pro produces for education, product design, and industrial applications.
Printing
Build area 130 x 180 x 330 mm
Printing technology IR Diode 5 W
Layer thickness 0.075 – 0.175 [mm] (0.003 – 0.006 [in])
Speed ( Z Axis ) up to 14 [mm/h] (0.55 [in/h])
temperature
Printing chamber Temperature 210 [°C] / 410 [°F] (Max)
Software & Interfaces
OS Support  Microsoft Windows 10 or higher
Connectivity  WiFi / Ethernet / USB
LCD  9″ interactive touchscreen
Internal camera (Yes/No) Yes
Remote control (Yes/No) Yes
Power & Physical characteristics
Voltage    230 [V] AC, 7.5 [A]
or 100-130 [V] AC, 15 [A]
Frequency 50/60 Hz
Maximum consumption 1.4 [kW]
Net weight 145 kg
Printer size (LxWxH) 650x610x1200 [mm]
Sinterit Studio

Sinterit Studio is a 3D printing software, an essential and integral element of all our printers. It is designed for auto-nesting, slicing, and modifying printing profiles.

Sinterit Studio helps you optimize the entire printing process and gives you many more printing options than competing solutions offer.

Lisa_pro_corner_view
32 open printing parameters & 9 compatible materials

The open software enables you to change and fine-tune an array of 32 printing parameters, achieve personalized shapes and discover unique properties within your prints.
Choose from ultra-durable, flexible and special materials for your innovative projects.

Easy to change materials & Larger models can be printed

You can switch between materials in a half hour. This makes your 3D printing experience much smoother. The Lisa PRO’s maximum diagonal print volume is 301mm/11.8 in for PA materials and 313mm /12.3 in for TPU/ TPE .

parts
open_set

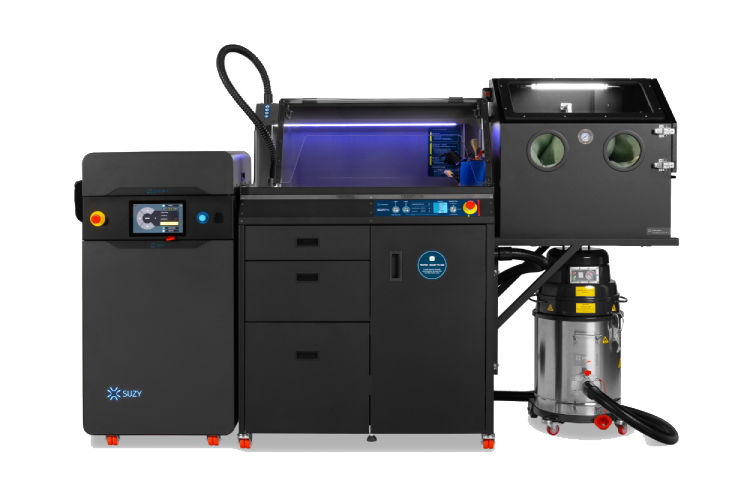

Open Set
Build your solution based on modules

While desiging our offer, we had in mind end-to-end user experience. You can choose not only from printers types but also all necesssary powder management and post-processing equipment, powders, software types or service options. It gives you more possibilities, freedom of choice, and make your process smoother. All can be adjusted to the space, printing needs and budget you have.
